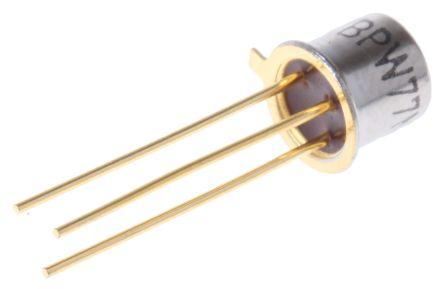

BPW77NA - VISHAY
Manufacturer:
VISHAY
ManyChip's Part#:
MC12359896
Category:
Phototransistor
Package:
TO-206
Datasheet:
Datasheet 3D Model
Description:
BPW77NA Series ±10° Sensitivity Through Hole NPN Silicon Phototransistor - TO-18
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BPW77NA is a Silicon NPN Phototransistor with high radiant sensitivity in hermetically sealed. It is sensitive to visible and near infrared radiation. It is suitable for visible and near infrared radiation.
High photo sensitivity
High radiant sensitivity
Fast response times
Base terminal connected
±10° Angle of half sensitivity

Show

BPW77NA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-206
Voltage Rating (DC)	70.0 V
Operating Voltage	5.00 V
Power Rating	0.25 W
Number of Channels	1 Channel
Number of Positions	3 Position
Wavelength	850 nm
Viewing Angle	20°
Peak Wavelength	850 nm
Polarity	NPN
Power Dissipation	250 mW
Power Consumption	250 mW
Rise Time	6 µs
Breakdown Voltage (Collector to Emitter)	70 V
Input Power (Max)	250 mW
Fall Time	5 µs
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Height	6.15 mm
Material	Silicon
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
