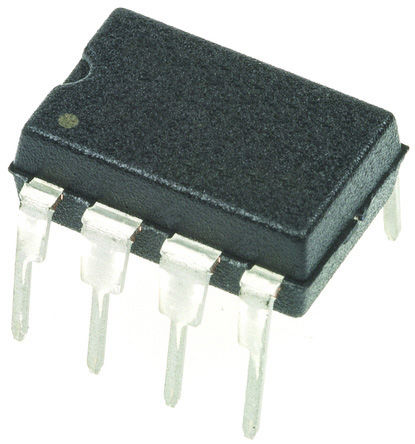

Image is for your reference only,please check specifications for details

BQ2002PN - TI
Manufacturer:
TI
ManyChip's Part#:
MC29787338
Category:
Battery Management IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS BQ2002PN Battery Charger for 1 Cell of NiCd, NiMH battery, 6V input, 7V/2A charge, DIP-8
Stock Locations:
Availability:
238 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.87

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The bq2002 and bq2002/F Fast-Charge ICs are low-cost CMOS battery-charge controllers providing reliable charge termination for both NiCd and NiMH battery applications. Controlling a
current-limited or constant-current supply allows the bq2002/F to be the basis for a cost-effective stand-alone or system-integrated charger. The bq2002/F integrates fast charge with optional top-off and pulsed-trickle con trol in a single IC for charging one or more NiCd orNiMH battery cells.

Show

BQ2002PN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	6.00V (max)
Input Voltage (DC)	6.00 V
Output Current	2000 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4 V
Supply Voltage (Max)	6 V
Input Voltage	6 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
