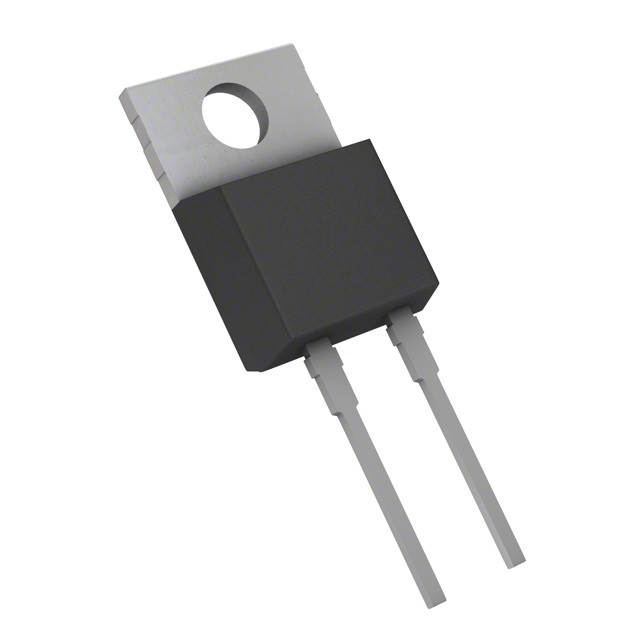

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IDH05G120C5XKSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Power Rating	109 W
Load Current	5 A
Forward Voltage	1.5 V
Power Dissipation	109 W
Reverse recovery time	0 ns
Forward Current	19100 mA
Max Forward Surge Current (Ifsm)	59 A
Forward Current (Max)	19100 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
Power Dissipation (Max)	109000 mW
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
