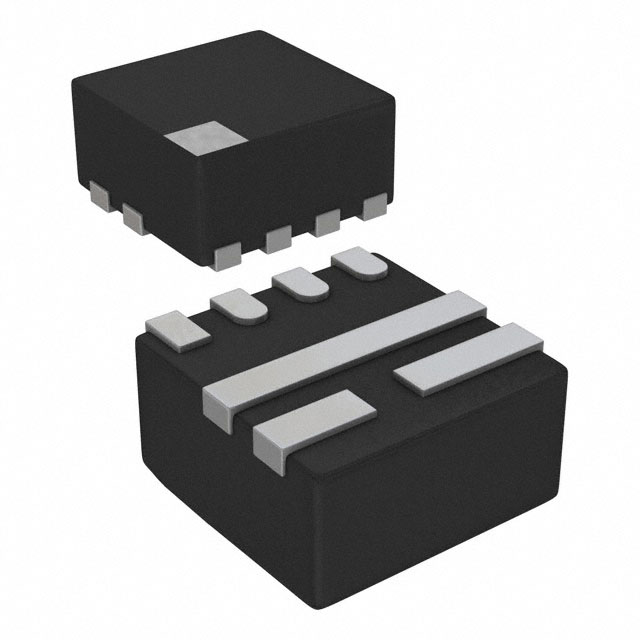

Image is for your reference only,please check specifications for details

TPS61230ARNST - TI
Manufacturer:
TI
ManyChip's Part#:
MC50084365
Category:
DC to DC Converter
Package:
VQFN-7
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.5V to 4.5V Step Up Single-Out 2.5V to 5.5V 2.4A 7Pin VQFN T/R
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.97

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 6A (Switch) 7-VFQFN

Show

TPS61230ARNST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	VQFN-7
Number of Outputs	1 Output
Output Voltage	2.5V ~ 5.5V
Output Current	6 A
Number of Positions	7 Position
Quiescent Current	25.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1.15 MHz
Switching Current	6.3 A
Input Voltage (Max)	4.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	2.5 V
Output Current (Max)	2.4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5 V
	Show
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
