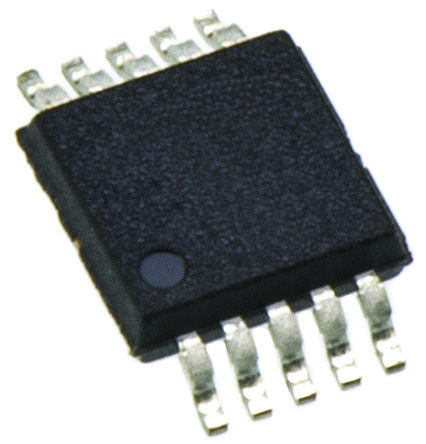

- BQ24092DGQT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2338939
-
Category:Battery Management IC
-
Package:PowerPad-MSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:Battery Charge Management 1A, Single-Input, Single-Cell Li-Ion Battery Charger with Operation Over JEITA and 10K NTC Battery Charger Li-Ion/Li-Pol 1000mA 4.2V 10Pin HVSSOP EP T/R
-
Stock Locations:
-
Availability:95 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.95
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BQ24092DGQT is a single-input single cell Li-ion and Li-pol battery charger Integrated Circuit targeted at space-limited portable applications. The IC operates from either an USB port or AC adapter. The high input voltage range with input overvoltage protection supports low-cost unregulated adapters. The bq2409 has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as average system load does not keep the battery from charging fully during the 10-hour safety timer. The battery is charged in 3 phases such as conditioning, constant current and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded. The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current & voltage regulation loops, charge status display and charge terminatio
- 1% Charge voltage accuracy
- 10% Charge current accuracy
- Programmable termination and pre-charge threshold
- Input voltage dynamic power management
- Out short-circuit protection and ISET short detection
- Fixed 10-hour safety timer
- Automatic termination and timer disable mode (TTDM)
- Status indication-charging/done
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
BQ24092DGQT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | PowerPad-MSOP-10 |
| Input Voltage (DC) | 6.50 V |
| Output Voltage | 4.2 V |
| Output Current | 1 A |
| Number of Positions | 10 Position |
| Power Dissipation | 1920 mW |
| Output Voltage (Max) | 4.23 V |
| Output Voltage (Min) | 4.16 V |
| Output Current (Max) | 1 A |
| Output Current (Min) | 10 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1920 mW |
| Supply Voltage | 4.5 V |
| Supply Voltage (Max) | 6.45 V |
| Input Voltage | 6.5 V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
