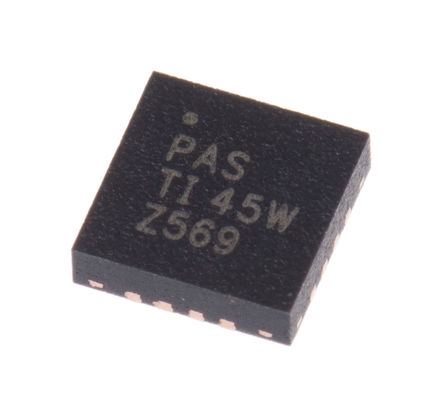

- BQ24650RVAT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC715789
-
Category:Battery Management IC
-
Package:VQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Battery Charge Management High Efficiency Synchronous Switch-Mode Charger Controller Solar Battery Charger Battery Charge Controller Li-Ion/Li-Pol 10000mA 2.1V to 26V 16Pin VQFN EP T/R
-
Stock Locations:
-
Availability:59 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 17.24
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BQ24650RVAT is a synchronous switch-mode integrated Battery-charge Controller for solar power with maximum power point tracking provides input voltage regulation, which reduces charge current when input voltage falls below a programmed level. When the input is powered by a solar panel, the input regulation loop lowers the charge current so that the solar panel can provide maximum power output. The BQ24650 offers a constant-frequency synchronous PWM controller with high accuracy current and voltage regulation. The charge controller charges the battery in three phases such as pre-conditioning, constant current and constant voltage. Charge is terminated when the current reaches 1/10 of the fast charge rate. The pre-charge timer is fixed at 30 minutes. The charge controller automatically restarts the charge cycle if the battery voltage falls below an internal threshold and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.
- Maximum Power Point Tracking (MPPT) capability by input voltage regulation
- Programmable MPPT setting
- Resistor programmable float voltage
- ±0.5% Charge-voltage regulation
- ±3% Charge-current regulation
- ±0.6% Input voltage regulation
- Internal loop compensation
- Internal digital soft start
- Input over-voltage protection
- Battery temperature sensing
- Battery absent detection
- Thermal shutdown
- Charge status outputs for led or host processor
- Charge enable on MPPSET pin
- Automatic sleep mode for low power consumption
- <15µA Off-state battery discharge current
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
BQ24650RVAT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | VQFN-16 |
| Input Voltage (DC) | 28.0 V |
| Output Voltage | 2.1V ~ 26V |
| Output Current | 10 A |
| Supply Current | 25 mA |
| Number of Positions | 16 Position |
| Switching Frequency | 600 kHz |
| Output Voltage (Max) | 2.1 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5V ~ 28V |
| Supply Voltage (Max) | 28 V |
| Input Voltage | 28 V |
| Show | |
| Size-Length | 3.6 mm |
| Size-Width | 3.6 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
