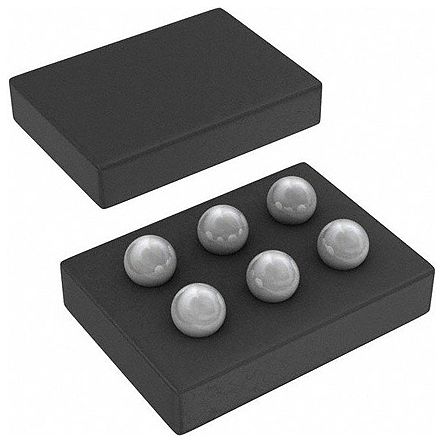

Image is for your reference only,please check specifications for details

BQ25100YFPT - TI
Manufacturer:
TI
ManyChip's Part#:
MC2965233
Category:
Battery Management IC
Package:
DSBGA-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS BQ25100YFPT Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 28V input, 4.2V / 250mA charge, DSBGA-6
Stock Locations:
Availability:
235 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.02

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ25100YFPT is a highly integrated Li-ion and Li-polymer Linear Charger targeted at space-limited portable applications. The high input voltage range with input overvoltage protection supports low-cost unregulated adapters. The BQ2510X has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as the average system load does not keep the battery from charging fully during the 10 hour safety timer. The battery is charged in three phases: conditioning, constant current and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded. The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops and charge termination.
Adjustable termination and precharge threshold
Input voltage dynamic power management
OUT short-circuit protection and ISET short detection
Fixed 10 hour safety timer
1% Charge voltage accuracy
10% Charge current accuracy
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

BQ25100YFPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DSBGA-6
Input Voltage (DC)	28.0 V
Output Current	250 mA
Number of Positions	6 Position
Output Voltage (Max)	4.32 V
Output Voltage (Min)	4.16 V
Output Current (Max)	250 mA
Output Current (Min)	10 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	28 V
	Show
Size-Length	1.6 mm
Size-Width	0.91 mm
Size-Height	0.31 mm
Operating Temperature	0℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
