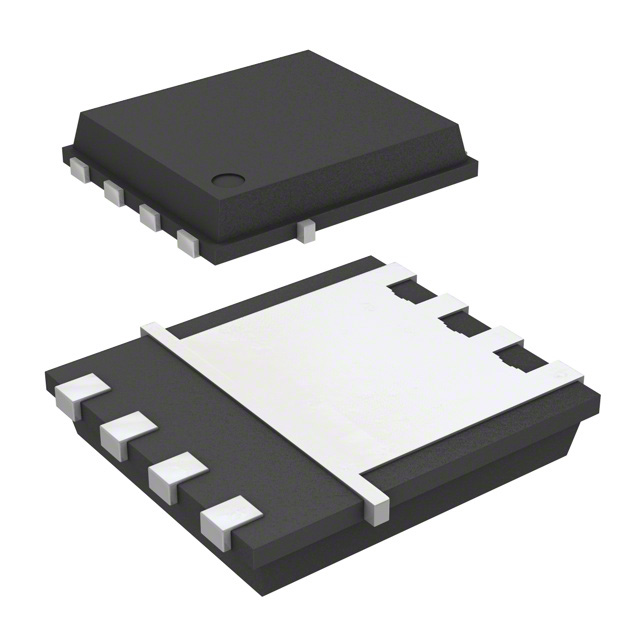

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description:
- With the new OptiMOS™ 30V product family, Infineon sets new standards in power density and energy efficiency for discrete power MOSFETs and system in package.
- Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life.
- Available in halfbridge configuration (power stage 5x6)
- Summary of Features:
- Ultra low gate and output charge
- Lowest on-state resistance in small footprint packages
- Easy to design in
- Benefits:
- Increased battery lifetime
- Improved EMI behavior making external snubber networks obsolete
- Saving costs
- Saving space
- Reducing power losses
BSC020N03LS G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 8 Pin |
| Case/Package | TDSON-8 |
| Number of Channels | 1 Channel |
| Threshold Voltage | 1 V |
| Drain to Source Voltage (Vds) | 30 V |
| Rise Time | 7 ns |
| Input Capacitance (Ciss) | 7200pF @15V(Vds) |
| Input Power (Max) | 96 W |
| Fall Time | 7 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2500 mW |
| Show | |
| Size-Length | 5.9 mm |
| Size-Width | 5.15 mm |
| Size-Height | 1.27 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
