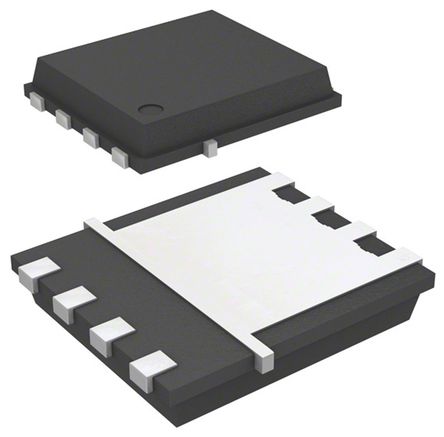

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

BSC093N04LS G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TDSON-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	7.8 mΩ
Power Dissipation	35 W
Threshold Voltage	1.2 V
Drain to Source Voltage (Vds)	40 V
Rise Time	2.4 ns
Input Capacitance (Ciss)	1400pF @20V(Vds)
Input Power (Max)	35 W
Fall Time	2.8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5 W
	Show
Size-Length	6.35 mm
Size-Width	5.35 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
