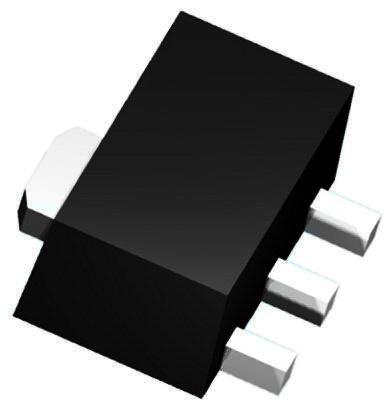

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Enhancement mode
- Avalanche rated
- Pb-free lead plating; RoHS compliant
- Qualified according to AEC Q101
BSS225 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-89-4 |
| Voltage Rating (DC) | 600 V |
| Current Rating | 90.0 mA |
| Polarity | N-CH |
| Power Dissipation | 1W (Ta) |
| Input Capacitance | 131 pF |
| Gate Charge | 5.80 nC |
| Drain to Source Voltage (Vds) | 600 V |
| Continuous Drain Current (Ids) | 90.0 mA |
| Input Capacitance (Ciss) | 131pF @25V(Vds) |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1W (Ta) |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 2.5 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
