Description
- Summary of Features:
- Optimized for synchronous rectification
- Ideal for high switching frequency
- Output capacitance reduction of up to 44%
- R DS(on) reduction of up to 43% from previous generation
- Benefits:
- Highest system efficiency
- Reduced switching and conduction losses
- Less paralleling required
- Increased power density
- Low voltage overshoot
- Target Applications:
- Telecom
- Server
- Solar
- Low voltage drives
- Light electric vehicles
- Adapter

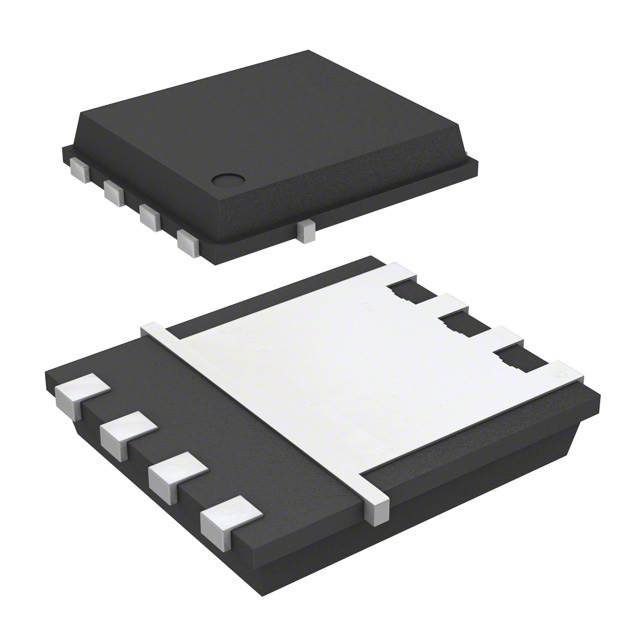

BSZ097N10NS5ATMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PG-TSDSON-8-FL |
| Power Rating | 69 W |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.0083 Ω |
| Polarity | N-CH |
| Power Dissipation | 69 W |
| Threshold Voltage | 2.2 V |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 40A |
| Rise Time | 5 ns |
| Input Capacitance (Ciss) | 2080pF @50V(Vds) |
| Input Power (Max) | 2.1 W |
| Fall Time | 5 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2.1W (Ta), 69W (Tc) |
| Show | |
| Size-Length | 3.3 mm |
| Size-Width | 3.3 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
