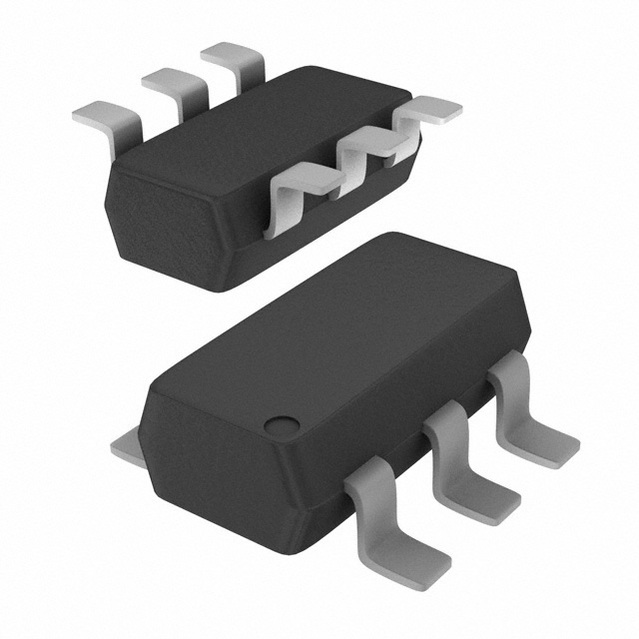

Image is for your reference only,please check specifications for details

SMS05T1 - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC85880900
Category:
TVS Diode
Package:
SC-74-6
Datasheet:
Datasheet 3D Model
Description:
DIODE 350W, UNIDIRECTIONAL, 4Element, SILICON, TVS DIODE, CASE 318F-05, SC-74, SC-59ML, 6Pin, Transient Suppressor
Stock Locations:
Availability:
4,005 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.64

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

FEATURES • SC-74 Quad Transient Voltage Suppressor for ESD Protection • SC-74 Package Allows Four Separate Unidirectional Configurations • Peak Power – 350 Watts, 8 x 20 S • ESD Rating of Class N (Exceeding 25 kV) per the Human Body Model • ESD Rating: IEC 61000–4–2 (ESD) 15 kV (air) 8 kV (contact) IEC 61000–4–4 (EFT) 40 Amps (5/50 ns) IEC 61000–4–5 (lightning) 23 Amps (8/20 s) • UL Flammability Rating of 94V–0 Typical Applications: • Hand Held Portable Applications such as Cell Phones, Pagers, Notebooks and Notebook Computers

Show

SMS05T1 Specifications
