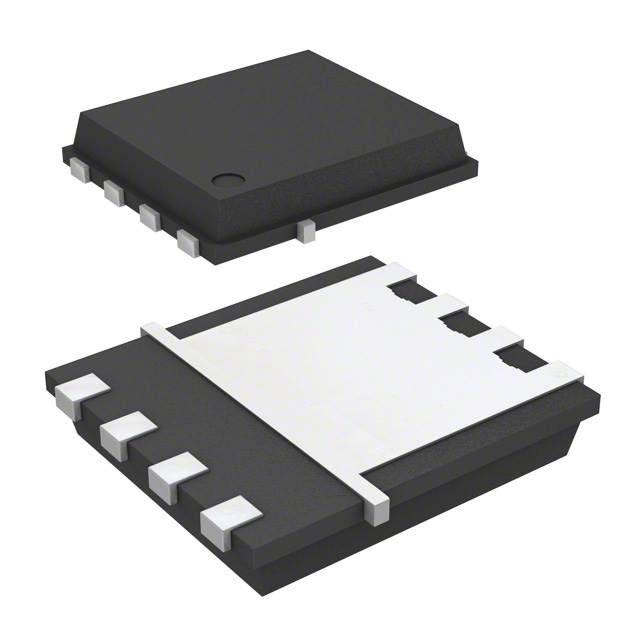

BSZ120P03NS3GATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-TSDSON-8
Power Rating	52 W
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.009 Ω
Polarity	P-Channel
Power Dissipation	52 W
Input Capacitance	2240 pF
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	40A
Rise Time	11 ns
Input Capacitance (Ciss)	3360pF @15V(Vds)
Fall Time	5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.1W (Ta), 52W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
