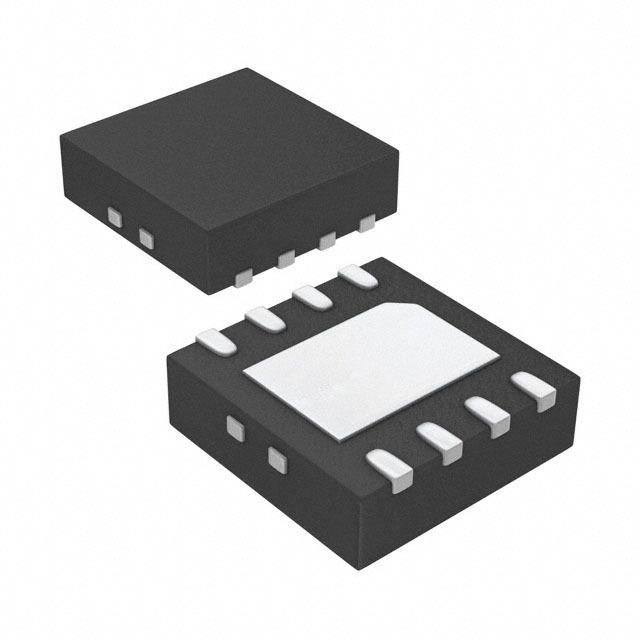

Image is for your reference only,please check specifications for details
- TPS7A1633DRBR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC16819686
-
Category:Voltage Regulator
-
Package:VDFN-8
-
Datasheet:Datasheet 3D Model
-
Description:60V, 5µA Iq, 100mA, Low-Dropout Voltage Regulator with Enable and Power Good 8-SON -40℃ to 125℃
-
Stock Locations:
-
Availability:2,750 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 105.39
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS7A16 family of ultra-low power, low-dropout (LDO) voltage regulators offers the benefits of ultra-low quiescent current, high input voltage and miniaturized, high thermal-performance packaging. The TPS7A16 family is designed for continuous or sporadic (power backup) battery-powered applications where ultra-low quiescent current is critical to extending system battery life.
- FEATURES
- • Wide Input Voltage Range: 3 V to 60 V
- • Ultralow Quiescent Current: 5 µA
- • Quiescent Current at Shutdown: 1 µA
- • Output Current: 100 mA
- • Low Dropout Voltage: 60 mV at 20 mA
- • Accuracy: 2%
- • Available in:
- – Fixed Output Voltage: 3.3 V, 5.0 V
- – Adjustable Version from ~1.2 V to 18.5 V
- • Power Good with Programable Delay
- • Current-Limit and Thermal Shutdown Protections
- • Stable with Ceramic Output Capactors: ≥ 2.2 µF
- • Package: High Thermal Performance MSOP-8 PowerPAD™
- • Operating Temperature Range: –40°C to +125°C
TPS7A1633DRBR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VDFN-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 100 mA |
| Supply Current | 15 µA |
| Quiescent Current | 0.005 mA |
| Output Capacitor Type | Ceramic |
| voltage rating | 0.265V @100mA,0.06V @20mA |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 60 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 0.1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±2 % |
| Input Voltage | 3V ~ 60V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
