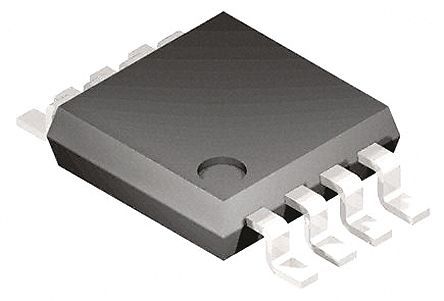

Image is for your reference only,please check specifications for details

BTS3408GXUMA2 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC3290995
Category:
Power Distribution
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 2 Driver, 0.55A, MOS, PDSO8, GREEN, PLASTIC, SOP-8
Stock Locations:
Availability:
286 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.89

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS3408G is a dual channel Low-side Switch with D-MOS output stages for driving resistive, capacitive and inductive loads. The design is based on Infineon"s Smart Power Technology (SPT) which allows bipolar, CMOS and power D-MOS devices on the same monolithic circuit. The BTS3408G is protected by embedded protection functions.
Logic level input
Compatible to 3V micro controllers
ESD Protection
Thermal shutdown with auto restart
Overload protection
Short-circuit protection
Over voltage protection
Open load detection (during Off)
Current limitation
Direct parallel control of the inputs
FREEZE functionality for multiplexing
General fault flag
Very low standby quiescent current
Switching frequencies up to 50kHz
Green product
AEC qualified

Show

BTS3408GXUMA2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Outputs	2 Output
Input Voltage (DC)	60.0 V
Output Current	0.45 A
Supply Current	1.5 mA
Number of Positions	8 Position
Power Dissipation	0.88 W
Input Voltage (Max)	7 V
Output Current (Max)	1 A
Number of Inputs	2 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	880 mW
Input Voltage	60 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
