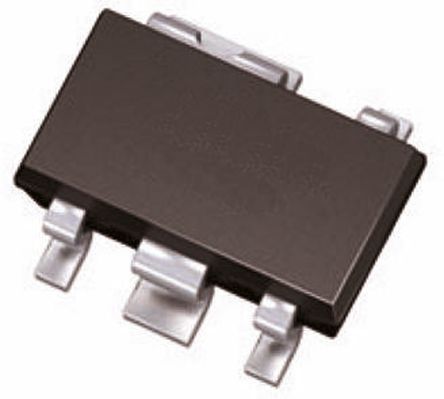

Image is for your reference only,please check specifications for details
- BTS3800SL - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC13103806
-
Category:FET Driver
-
Package:SCT-595-5
-
Datasheet:Datasheet 3D Model
-
Description:Buffer/Inverter Based Peripheral Driver, 1 Driver, 0.35A, MOS, PDSO5, GREEN, PLASTIC, SCT-5
-
Stock Locations:
-
Availability:1,240 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.75
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Short circuit and over load protection
- Thermal shutdown with latch behavior
- ESD protection
- Over voltage protection
- Logic level input suitable for 5V and 3.3V
- Small footprint automotive power package
- Green Product (RoHS compliant)
- AEC Qualified
BTS3800SL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SCT-595-5 |
| Supply Voltage (DC) | 2.70V (min) |
| Power Rating | 0.5 W |
| Number of Outputs | 1 Output |
| Output Current | 350 mA |
| Supply Current | 0.3 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Output Current (Min) | 0.35 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
