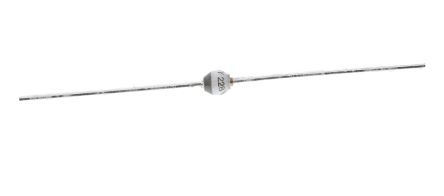

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* 1.65KV Vrrm, 3A If(AV) standard avalanche sinterglass diode in 2 pin SOD-64 package
Glass passivated junction
Hermetically sealed package
Suitable for high voltage rectification, efficiency diode in horizontal deflection circuit

Show

BY228TAP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	SOD-64
Current Rating	3.00 A
Load Current	3 A
Number of Positions	2 Position
Forward Voltage	1.5 V
Reverse recovery time	20000 ns
Max Repetitive Reverse Voltage (Vrrm)	1500 V
Forward Current	3 A
Max Forward Surge Current (Ifsm)	50 A
Max Reverse Leakage Current (Ir)	2 uA
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	3 A
Operating Temperature (Max)	140 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	4 mm
Size-Width	4.3 mm
Size-Height	4.3 mm
Operating Temperature	-55℃ ~ 140℃
Product Lifecycle Status	Active
Packaging	Ammo Pack
Minimum Packing Quantity	2500
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
