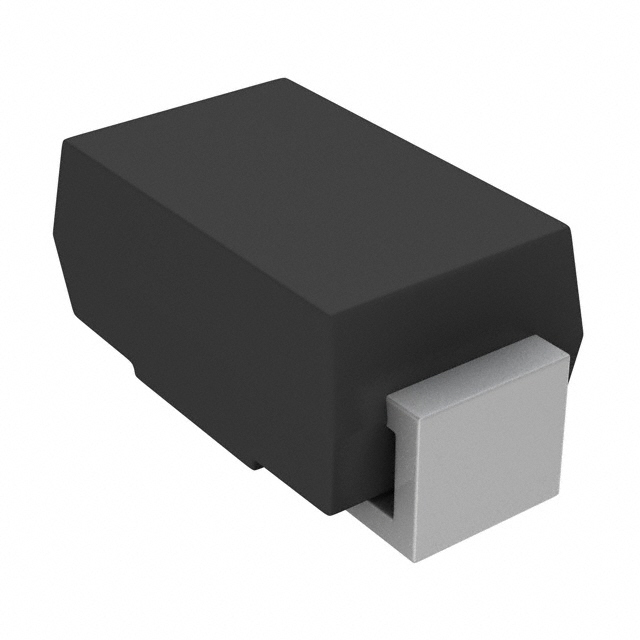

Image is for your reference only,please check specifications for details
- BZG05C3V6TR3 - Vishay Semiconductor
-
Manufacturer:Vishay Semiconductor
-
ManyChip's Part#:MC142514794
-
Category:Zener Diode, Zener
-
Package:DO-214AC-2
-
Datasheet:Datasheet 3D Model
-
Description:VISHAY BZG05C3V6TR3 Zener Single Diode, 3.6V, 3W, DO-214AC, 5%, 2Pins, 150℃
-
Stock Locations:
-
Availability:260 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.29
Updated at 24/06/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BZG05C3V6TR3 is a Zener Diode features high reliability, wave and reflow solderable. It is designed for voltage stabilization.
- Fits onto 5mm SMD footpads
- AEC-Q101 qualified
- UL94V-0 Moulding compound flammability rating
- Moisture sensitivity level 1
BZG05C3V6TR3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AC-2 |
| Number of Positions | 2 Position |
| Forward Voltage | 1.2V @200mA |
| Power Dissipation | 3 W |
| Test Current | 60 mA |
| Zener Voltage | 3.6 V |
| Input Power (Max) | 1.25 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 3000 mW |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 2.8 mm |
| Size-Height | 2.3 mm |
| Operating Temperature | 150 ℃ |
| Product Lifecycle Status | Discontinued at Digi-Key |
| Packaging | Cut Tape (CT) |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
