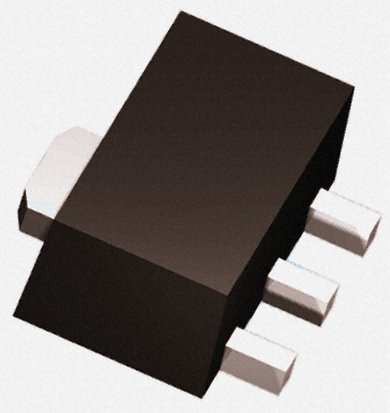

The PBSS4480X is a 4A NPN breakthrough-in small signal (BISS) Transistor housed in a surface-mount plastic package. It offers collector pad for good heat transfer.
High hFE and low VCEsat at high current operation
High efficiency leading to less heat generation
PNP complement is PBSS5480X
1Y Marking code

Show

PBSS4480X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	550 mW
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	4A
hFE Min	80
DC Current Gain (hFE)	400
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	2.5 W
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	1.6 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
