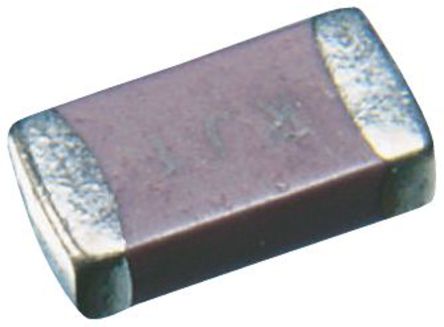

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Kemet C series commercial grade multilayer ceramic chip capacitor is Class 2I, Y5V dielectric material which exhibits predictable in capacitance with respect to time and voltage. There will be wide variation in capacitance with reference to ambient temperature. Y5V dielectric capacitors suit for bypass, decoupling other applications where dielectric losses, high insulation resistance and capacitance stability are not of major importance. Standard end terminations use a nickel barrier layer and a matte tin finish to provide excellent soldering ability for customers. MLCCs are monolithic devices that consist of laminated layers of specially formulated, ceramic dielectric materials interspersed with a metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination is integrated on the chip for connection.
Capacitance values ranging from 0.22µF to 22µF
EIA 0402, 0603, 0805, 1206 and 1210 case sizes available
DC voltage rating of 6.3V to 50V
High temperature range of -30°C to 85°C
Capacitance tolerances of 80% or -20%
Non polarity device, minimize installation concerns

Show

C1206C105Z3VACTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3216
Case/Package	1206
Voltage Rating (DC)	25 V
Operating Voltage	25 V
Insulation Resistance	100 MΩ
Capacitance	1 µF
Capacitance Tolerance	-20 %
Dielectric Characteristic	Y5V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	25 V
	Show
Size-Length	3.2 mm
Size-Width	1.6 mm
Size-Height	1.6 mm
Dielectric Material	Ceramic
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
