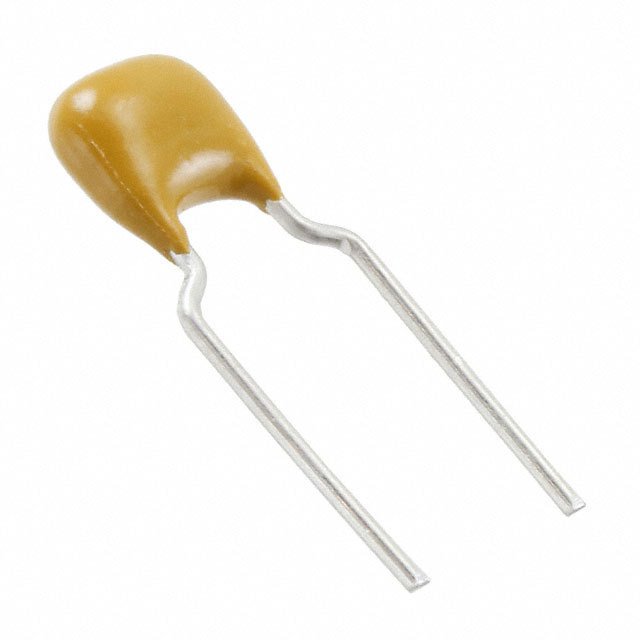

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Kemet C322 series are radial leaded, standard Goldmax multilayer ceramic capacitor with Z5U dielectric material. MLCCs are monolithic devices that consist of laminated layers of specially formulated ceramic dielectric materials interspersed with metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.
Capacitance value ranges from 1000pF to 6.8µF
Rated DC voltage of 50V, 100V and 200V
M (±20%), P (0, -100%), Z (-20, +80%) tolerance
100% matte tin (Sn) with nickel (Ni) plating on steel core
Dimension is 5.08mm x 6.60mm (L x H)
5.08mm pitch spacing
Epoxy encapsulated

Show

C322C224M5U5TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Pin Pitch	5.08 mm
Voltage Rating (DC)	50 V
Operating Voltage	50 V
Capacitance	0.22 µF
Capacitance Tolerance	±20 %
Dielectric Characteristic	Z5U
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	10 ℃
Voltage Rating	50 V
	Show
Size-Length	5.08 mm
Size-Width	5.08 mm
Size-Height	6.6 mm
Lead Length	7.00 mm
Size-Thickness	3.18 mm
Material	Z5U/-55℃~+125℃
Operating Temperature	10℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8532240060
ECCN Code	EAR99
