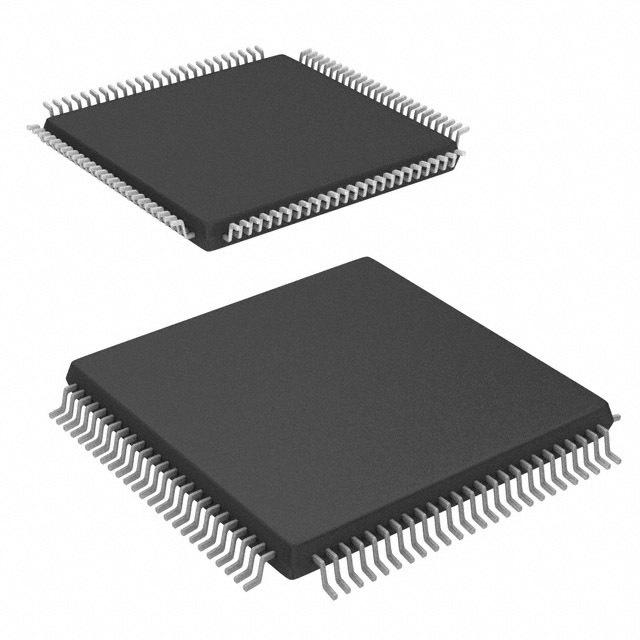

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * ANALOG PERIPHERALS * SAR ADC * 10-Bit * ± 1 LSB INL * Programmable Throughput up to 100 ksps * Up to 8 External Inputs; Programmable as Single-Ended or Differential * Programmable Amplifier Gain: 16, 8, 4, 2, 1, 0.5 * Data-Dependent Windowed Interrupt Generator * Built-in Temperature Sensor (± 3°C) * 8-bit ADC * Programmable Throughput up to 500 ksps * 8 External Inputs * Programmable Amplifier Gain: 4, 2, 1, 0.5 * Two 12-bit DACs * Can Synchronize Outputs to Timers for Jitter-Free Wave- form Generation * Two Analog Comparators * Voltage Reference * Precision VDD Monitor/Brown-Out Detector * ON-CHIP JTAG DEBUG & BOUNDARY SCAN * On-Chip Debug Circuitry Facilitates Full- Speed, Non-Intrusive In-Circuit/In-System Debugging- Provides Breakpoints, Single-Stepping, Watchpoints, Stack Monitor; Inspect/Modify Memory and Registers * Superior Performance to Emulation Systems Using ICEChips, Target Pods, and Sockets * IEEE1149.1 Compliant Boundary Scan * Low-Cost, Complete Development Kit
C8051F022 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | TQFP-100 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Number of Channels | 5 Channel |
| Clock Speed | 25.0MHz (max) |
| RAM Memory Size | 4.25K x 8 |
| FLASH Memory Size | 64000 B |
| Number of I/O Pins | 64 IO |
| Access Time | 25.0 µs |
| Core Architecture | 8051 |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Not Recommended |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
