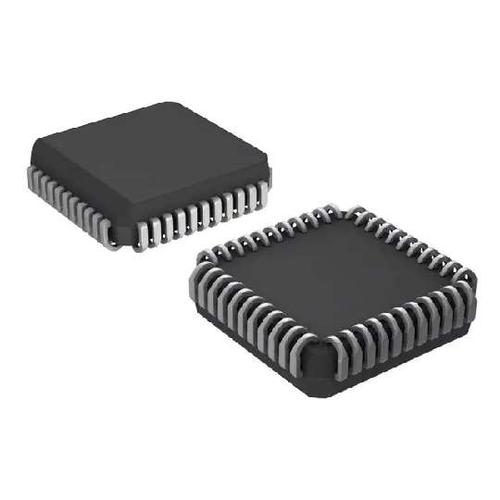

Image is for your reference only,please check specifications for details
- CD22M3494MQZ - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC74274733
-
Category:Active Chip
-
Package:PLCC-44
-
Datasheet:Datasheet 3D Model
-
Description:16x8x1 BiMOS-E Crosspoint Switch; PDIP40, PLCC44; Temp Range: -40° to 85℃
-
Stock Locations:
-
Availability:18 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.69
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 16 x 8 x 1 BiMOS-E Crosspoint Switch
- The Intersil CD22M3494 is an array of 128 analog switches capable of handling signals from DC to video. Because of the switch structure, input signals may swing through the total supply voltage range, VDDto VEE. Each of the 128 switches may be addressed via the ADDRESS input to the 7
- to 128 line decoder.
- Features
- • 128 Analog Switches
- • Low rON
- • Guaranteed rONMatching
- • Analog Signal Input Voltage Equal to the Supply Voltage
- • Wide Operating Voltage . . . . . . . . . . . . . . . . . . 4V to 15V
- • Parallel Input Addressing
- • High Latch Up Current . . . . . . . . . . . . . . . . . . 50mA (Min)
- • Very Low Crosstalk
- • Pin and Functionally Compatible with the Following Types: SGS M3494 and Mitel MT8816
- • Pb-Free Plus Anneal Available (RoHS Compliant)
- Applications
- • PBX Systems
- • Instrumentation
- • Analog and Digital Multiplexers
- • Video Switching Networks
CD22M3494MQZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 44 Pin |
| Case/Package | PLCC-44 |
| Supply Voltage (DC) | 4.00V (min) |
| Supply Current | 5 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 44 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 50 MHz |
| Supply Voltage (Max) | 15 V |
| Supply Voltage (Min) | 4 V |
| Show | |
| Size-Length | 16.66 mm |
| Size-Width | 16.66 mm |
| Size-Height | 3.69 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
