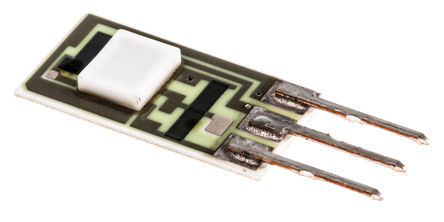

Image is for your reference only,please check specifications for details

SS94A2 - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC8197940
Category:
Hall Effect Sensor
Package:
SIP-3
Datasheet:
Datasheet 3D Model
Description:
HONEYWELL SS94A2 Hall Effect Sensor, Linear, 1mA, SIP, 3Pins, 6.6VDC, 12.6VDC
Stock Locations:
Availability:
2,126 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 46.09

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SS94A2 is a Hall-effect Integrated Circuit Chip which provides increased temperature stability and performance. Laser trimmed thick film resistors on the ceramic substrate and thin film resistors on the integrated circuit reduce null and gain shifts over-temperature which results in consistent sensitivity from one device to the next. Laser trimmed thin film and thick film resistors minimize sensitivity variations and compensate for temperature variations.
Single current sinking or current sourcing linear output
Improved temperature stability
Standard mounting centre

Show

SS94A2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	SIP-3
Supply Voltage (DC)	6.60V (min)
Current Rating	30.0 mA
Output Voltage	≥3.96 V
Output Current	1 mA
Supply Current	30 mA
Number of Positions	3 Position
Output Current (Max)	1 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	6.6V ~ 12.6V
Supply Voltage (Max)	12.6 VDC
Supply Voltage (Min)	6.6 VDC
Input Voltage	6.6.12.6 V
	Show
Size-Length	7.62 mm
Size-Width	15.24 mm
Size-Height	15.2 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8543704000
ECCN Code	EAR99
