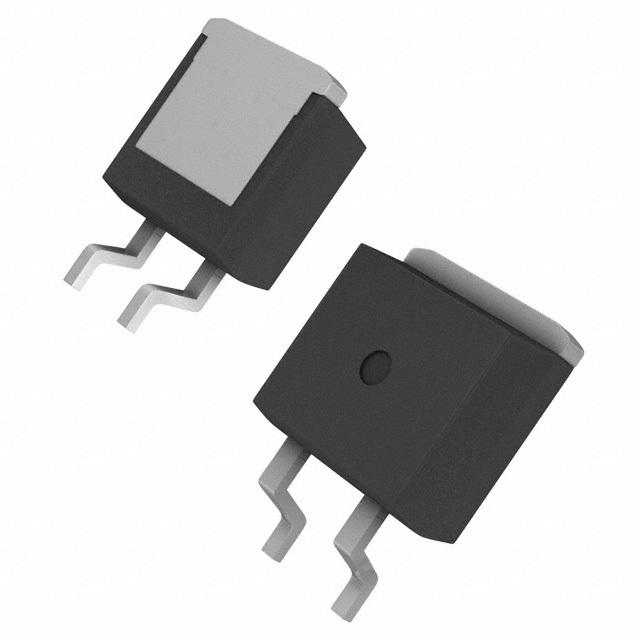

- IXGA20N120A3 - IXYS Semiconductor
-
Manufacturer:IXYS Semiconductor
-
ManyChip's Part#:MC62439830
-
Category:IGBT Transistor, IGBT Module
-
Package:TO-263-3
-
Datasheet:Datasheet 3D Model
-
Description:Trans IGBT Chip N-CH 1200V 40A 180000mW 3Pin(2+Tab) TO-263AA
-
Stock Locations:
-
Availability:80 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.5
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Ultra-Low Vsat PT IGBTs for up to 3 kHz Switching
- VCES= 1200V
- IC110 = 20A
- VCE(sat) ≤2.5V
- Features
- Optimized for Low Conduction Losses
- International Standard Packages
- Advantages
- High Power Density
- Low Gate Drive Requirement
- Applications
- Power Inverters
- UPS
- Motor Drives
- SMPS
- PFC Circuits
- Battery Chargers
- Welding Machines
- Lamp Ballasts
- Inrush Current Protection Circuits
IXGA20N120A3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Power Dissipation | 180 W |
| Breakdown Voltage (Collector to Emitter) | 1200 V |
| Input Power (Max) | 180 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 180000 mW |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Not Recommended for New Design |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
