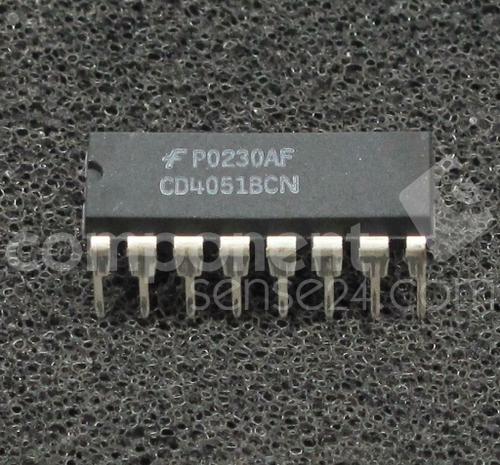

CD4051BCN - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC105417233
Category:
Interface IC, Interface Controller
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
Single-Ended Multiplexer, 1 Func, 8Channel, CMOS, PDIP16, 0.3INCH, PLASTIC, MS-001, DIP-16
Stock Locations:
Availability:
286 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.27

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The CD4051BC, CD4052BC, and CD4053BC analog multiplexers/demultiplexers are digitally controlled analog
switches having low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15V
p-p can be achieved by digital signal amplitudes of 3−15V. For example, if VDD =5V, VSS =0V and VEE = −5V, analog signals from −5V to +5V can be controlled by digital inputs of 0−5V. The multiplexer circuits dissipate extremely low quiescent power over the full VDD−VSS and VDD−VEE supply voltage ranges, independent of the logic state of the control signals. When a logical “1” is present at the inhibit input terminal all channels are “OFF”.
Features
■Wide range of digital and analog signal levels: digital 3 – 15V, analog to 15Vp-p
■Low “ON” resistance: 80Ω(typ.) over entire 15Vp-p signal-input range for VDD −VEE =15V
■High “OFF” resistance: channel leakage of ±10 pA (typ.) at VDD −VEE =10V
■Logic level conversion for digital addressing signals of 3 – 15V (VDD −VSS =3 – 15V) to switch analog signa
to 15 Vp-p(VDD −VEE =15V)
■Matched switch characteristics: ∆RON =5Ω(typ.) for VDD −VEE =15V
■Very low quiescent power dissipation under all digital-control input and supply conditions: 1 µW (typ.) at VDD −VSS =VDD −VEE =10V
■Binary address decoding on chip

Show

CD4051BCN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	15.0 V
Number of Outputs	1 Output
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Polarity	Non-Inverting
Power Dissipation	0.7 W
Number of Gates	1 Gate
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	40 MHz
Supply Voltage	5V ~ 15V
	Show
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
