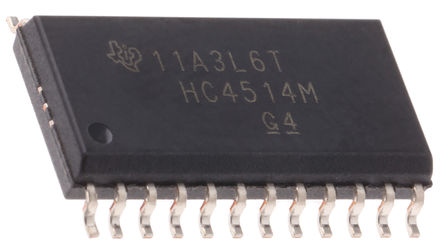

Image is for your reference only,please check specifications for details

CD74HC4514M - TI
Manufacturer:
TI
ManyChip's Part#:
MC3656807
Category:
Logic Controller, Logic IC
Package:
SOIC-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS CD74HC4514M Decoder / Demultiplexer, HC Family, 16 Output, 2V to 6V, SOIC-24
Stock Locations:
Availability:
238 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.52

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CD74HC4514M is a 4-to-16 line high speed CMOS Decoder/Demultiplexer with input latches. It consist of a 4-bit strobed latch and a 4-to-16 line decoder. The selected output is enabled by a low on the enable input (E\\). A high on E\ inhibits selection of any output. Demultiplexing is accomplished by using the E\ input as the data input and the select inputs (A0-A3) as addresses. This E\ input also serves as a chip select when these devices are cascaded. When LE\ is high the output follows changes in the inputs (see truth table). When LE is low the output is isolated from changes in the input and remains at the level (high for the 4514) it had before the latches were enabled.
Balanced propagation delay and transition times
Significant power reduction compared to LSTTL logic ICs
High noise immunity
10 LSTTL Load standard outputs
15 LSTTL Load bus driver outputs

Show

CD74HC4514M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SOIC-24
Supply Voltage (DC)	2.00V (min)
Number of Outputs	16 Output
Number of Circuits	1 Circuit
Number of Positions	24 Position
Number of Bits	4 Bit
Bandwidth	28.0 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	15.4 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
