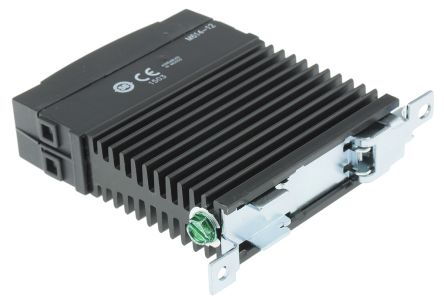

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CKRD2430 is a Solid State Relay with thermally conductive epoxy encapsulation, SPST-NO contact, zero crossing switching mode and cage box clamp terminals. This CKR-series DIN-rail-mount relay features LED status indicator and integral heat-sink eliminates need for thermal calculations.
Finger-proof easy-to-use
10AWG Maximum wire size
Green LED status indicator display
AC or DC Control
SCR output for heavy industrial loads
1.6Vpk Maximum on-state voltage drop
4000Vrms Dielectric strength
1/2ms Turn-on/off maximum time
-40 to 80°C Ambient operating temperature range
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.

Show

CKRD2430 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Number of Pins	4 Pin
Case/Package	SSR with Integrated Heat Sink
Supply Voltage (DC)	4.50V (min)
Output Voltage	24V ~ 280V
Output Current	30000 mA
Contacts Type	SPST-NO
Load Current	30 A
Input Current	8mA ~ 12mA
Isolation Voltage	4000 v
Input Voltage (Max)	280 V
Input Voltage (Min)	24 V
Output Voltage (Max)	280 V
Load Current (Max)	30 Arms
Load Current (Min)	0.15 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Operating Voltage (Min)	24 Vrms
Operating Voltage (Max)	280 Vrms
Input Voltage	32 V
	Show
Size-Length	81.9 mm
Size-Width	22.5 mm
Size-Height	99 mm
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
