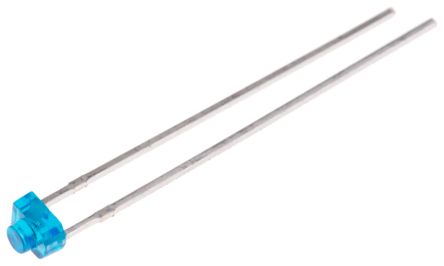

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CQY36N is a 950nm Infrared Emitting Diode with GaAs technology moulded in a clear plastic miniature package without lens. It is suitable for use in radiation source in near infrared range.
- High reliability
- Low forward voltage
- Suitable for high pulse current operation
- Good spectral matching with Si photodetectors
- Package matches with detector BPW16N
CQY36N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | T-3 |
| Voltage Rating (DC) | 1.30 V |
| Number of Positions | 2 Position |
| Forward Voltage | 1.6 V |
| Wavelength | 950 nm |
| Viewing Angle | 110° |
| Peak Wavelength | 950 nm |
| Power Dissipation | 160 W |
| Rise Time | 800 ns |
| Test Current | 50 mA |
| Forward Current | 100 mA |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 100 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 160 mW |
| Show | |
| Size-Height | 2.2 mm |
| Color | Infrared |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
