Description

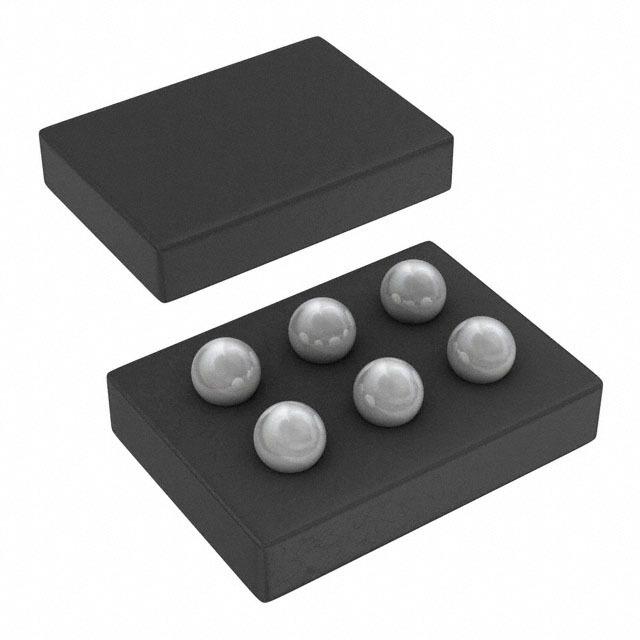

This 8.8 mΩ, 12 V, N-Channel device is designed to deliver the lowest on resistance and gate charge in a small 1 × 1.5 mm outline with excellent thermal characteristics and an ultra low profile.

Show

CSD13306W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DSBGA-6
Polarity	N-CH
Power Dissipation	1.9 W
Drain to Source Voltage (Vds)	12 V
Continuous Drain Current (Ids)	3.5A
Rise Time	11 ns
Input Capacitance (Ciss)	1370pF @6V(Vds)
Fall Time	8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.9W (Ta)
	Show
Size-Length	1.5 mm
Size-Width	1 mm
Size-Height	0.62 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
