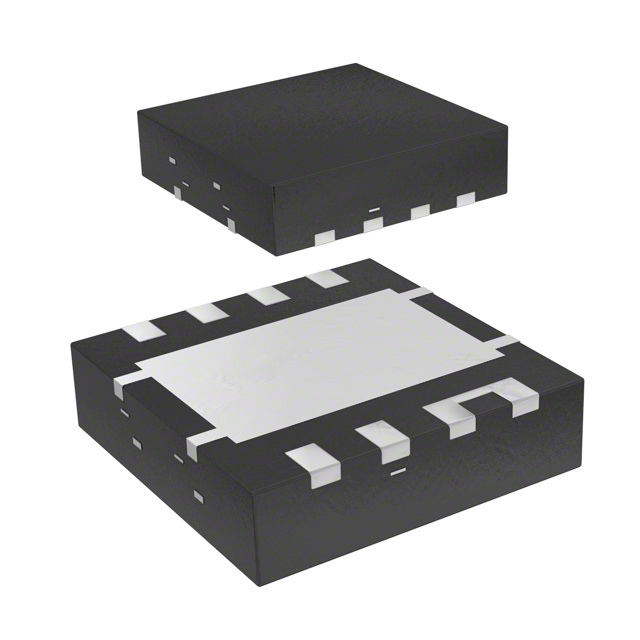

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Simplify your voltage needs with this CSD87333Q3D specialized power IC manufactured by Texas Instruments for a cleaner and sleeker look. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This USB PWM controller has a minimum operating temperature of -55 °C and a maximum of 150 °C.
CSD87333Q3D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSON-8 |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.0119 Ω |
| Polarity | Dual N-Channel |
| Power Dissipation | 6 W |
| Threshold Voltage | 950 mV |
| Drain to Source Voltage (Vds) | 30 V |
| Rise Time | 3.9 ns |
| Input Capacitance (Ciss) | 662pF @15V(Vds) |
| Input Power (Max) | 6 W |
| Fall Time | 2.2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 3.3 mm |
| Size-Width | 3.3 mm |
| Size-Height | 1 mm |
| Operating Temperature | 125℃ (TJ) |
| Product Lifecycle Status | |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
