Image is for your reference only,please check specifications for details

CSNA111 - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC5898800
Category:
Current Sensor
Package:
Module, Single Pass Through
Datasheet:
Datasheet 3D Model
Description:

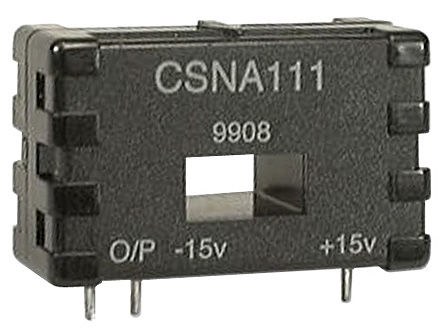

HONEYWELL CSNA111 Current Sensor, CSN Series, Solid State, -70A to 70A, Closed Loop Output, 14.25VDC to 15.75VDC
Stock Locations:
Availability:
241 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 37.46

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CSNA111 is a closed loop linear Current Sensor is based on the principles of the magnetoresistive or hall effects and the null balance or zero magnetic flux method (feedback system). The magnetic flux in the sensor core is constantly controlled at zero. The amount of current required to balance zero flux is the measure of the primary current flowing through the conductor, multiplied by the ratio of the primary to secondary windings. This closed loop current is the output from the device and presents an image of the primary current reduced by the number of secondary turns at any time. This current can be expressed as a voltage by passing it through a resistor.
Current sensing up to 1275A (depending on product listing)
Measures AC, DC and impulse currents
Rapid response
High overload capability
High level of electrical isolation between primary and secondary circuits
Industrial operating temperature range
Small size and weight
90R coil resistance
1000 coil turns
Polycarbonate/ABS blend (UL94-V0) housing
PCB on 3-pin mounting
Offset pinout style
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.

Show

CSNA111 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Module, Single Pass Through
Current Rating	70 A
Supply Current	15.0 A
Number of Channels	1 Channel
Coil Resistance	90 Ω
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	0.5 %
	Show
Size-Length	40.5 mm
Size-Width	40.5 mm
Size-Height	25.7 mm
Operating Temperature	0℃ ~ 70℃
Housing Material	Polycarbonate
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9030330040
ECCN Code	EAR99
