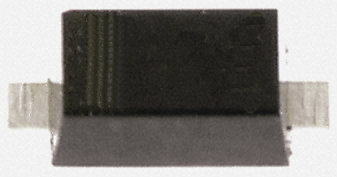

Image is for your reference only,please check specifications for details

DA22F2100L - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC22631240
Category:
TVS Diode
Package:
Mini2-F4-B
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS DA22F2100L Fast / Ultrafast Diode, 200V, 1A, Single, 980mV, 35ns, 15A
Stock Locations:
Availability:
3,626 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DA22F2100L is a silicon epitaxial planar Fast-recovery Diode for high speed switching circuits.
Small reverse current IR
Short reverse recovery time trr
Halogen-free
UL94V-0 Flammability rating
Moisture sensitivity level 1

Show

DA22F2100L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	Mini2-F4-B
Forward Voltage	980mV @1A
Reverse recovery time	35 ns
Forward Current	1 A
Max Forward Surge Current (Ifsm)	15 A
Maximum Forward Voltage (Max)	980 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.6 mm
Size-Width	1.6 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
