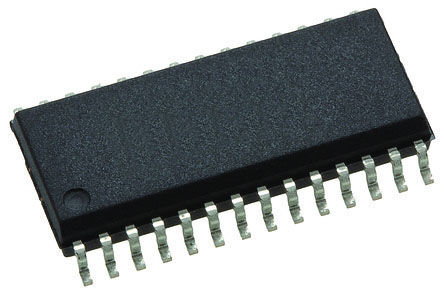

- DAC712U - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC13633783
-
Category:Digital to Analog, DAC IC
-
Package:SOIC-28
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter 16Bit Digital-to-Converter With 16Bit Bus Interface DAC 1CH R-2R 16Bit 28Pin SOIC Tube
-
Stock Locations:
-
Availability:284 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 34.41
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DAC712U is a complete 16-bit resolution Digital-to-analog Converter (DAC) with monotonicity over temperature. The DAC712 has a precision 10V temperature-compensated voltage reference, ±10V output amplifier and 16-bit port bus interface. The digital interface is fast, 60ns minimum write pulse width, double-buffered and has a CLEAR function that resets the analog output to bipolar zero. GAIN and OFFSET adjustment inputs are arranged so that they can be easily trimmed by external DA converter as well as by potentiometers. The DAC712 is available in two linearity error performance grades ±4 and ±2LSB and three differential linearity grades ±4, ±2 and ±1LSB. The DAC712 is specified at power-supply voltages of ±12 and ±15V.
- High-speed, 16-bit parallel double-buffered interface
- Power dissipation - 600mW maximum
- Green product and no Sb/Br
DAC712U Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Supply Voltage (DC) | 16.5V (max) |
| Number of Outputs | 1 Output |
| Supply Current | 22.0 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 28 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 600 mW |
| Sample Rate | 100 ksps |
| Power Consumption | 525 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 600 mW |
| Number of DACs | 1 DAC |
| Show | |
| Size-Length | 18 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
