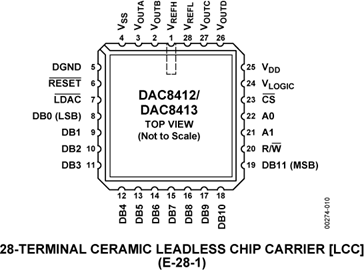

Image is for your reference only,please check specifications for details

DAC8412FPC - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC21574110
Category:
Digital to Analog, DAC IC
Package:
PLCC-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES DAC8412FPC Digital to Analog Converter, 12Bit, Bipolar, Unipolar, 5V to ± 15V, LCC, 28Pins
Stock Locations:
Availability:
1,501 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The DAC8412/DAC8413 are quad, 12-bit voltage output DACs with readback capability. Built using a complementary BiCMOS process, these monolithic DACs offer the user very high package density.
FEATURES
+5 V to ±15 V operation
Unipolar or bipolar operation
True voltage output
Double-buffered inputs
Reset to minimum (DAC8413) or center scale (DAC8412)
Fast bus access time
Readback
APPLICATIONS
Automatic test equipment
Digitally controlled calibration
Servo controls
Process control equipment

Show

DAC8412FPC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	PLCC-28
Number of Outputs	4 Output
Supply Current	8.50 mA
Number of Channels	4 Channel
Number of Bits	12 Bit
Power Dissipation	0.33 W
Sample Rate	167 ksps
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	330 mW
Number of DACs	4 DAC
Supply Voltage (Max)	15 V
Supply Voltage (Min)	5 V
	Show
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
