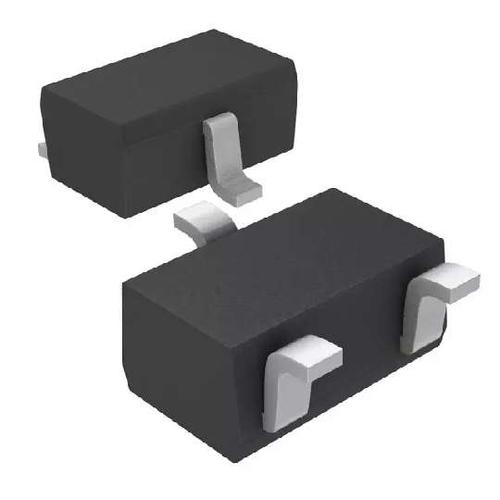

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Applications
- Ultra high speed switching
- Features
- 1) Small mold type (UMD3).
- 2) High reliability.
- Construction
- Silicon epitaxial planar
DAN202UT106 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-323-3 |
| Voltage Rating (DC) | 80.0 V |
| Current Rating | 100 mA |
| Capacitance | 3.50 pF |
| Forward Voltage | 1.2V @100mA |
| Power Dissipation | 200 mW |
| Reverse recovery time | 4 ns |
| Forward Current | 300 mA |
| Maximum Forward Voltage (Max) | 1.2V @100mA |
| Forward Current (Max) | 300 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | 150℃ (Max) |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Width | 1.25 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
