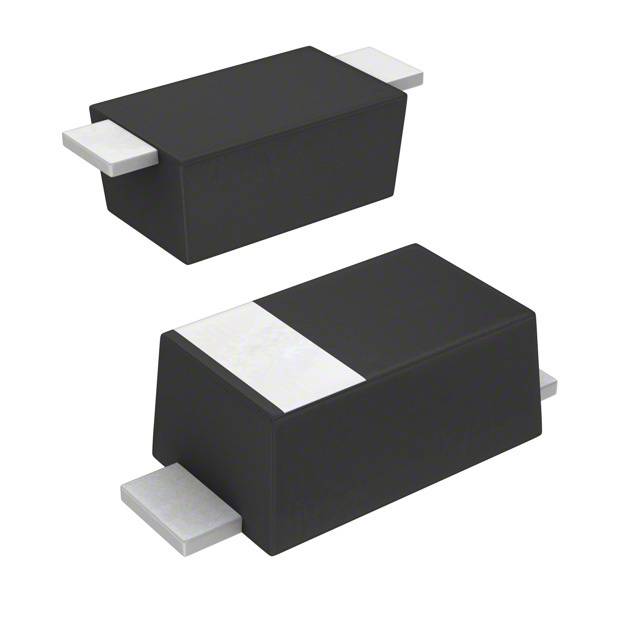

DB2W40900L - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC33510500
Category:
Schottky Diode
Package:
Mini2-F3-B
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS DB2W40900L Small Signal Schottky Diode, Single, 40V, 3A, 550mV, 30A, 150℃
Stock Locations:
Availability:
3,451 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.52

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DB2W40900L is a silicon epitaxial planar Schottky Barrier Diode features low forward voltage VF. It is used for high frequency rectification.
Forward current IF (Average) 3A rectification is possible
Halogen-free
UL94V-0 Flammability rating
Moisture sensitivity level 1
-40 to 85°C Operating ambient temperature range

Show

DB2W40900L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	Mini2-F3-B
Number of Positions	2 Position
Forward Voltage	0.55 V
Reverse recovery time	25 ns
Forward Current	3 A
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	550 mV
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Junction Temperature	150℃ (Max)
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
