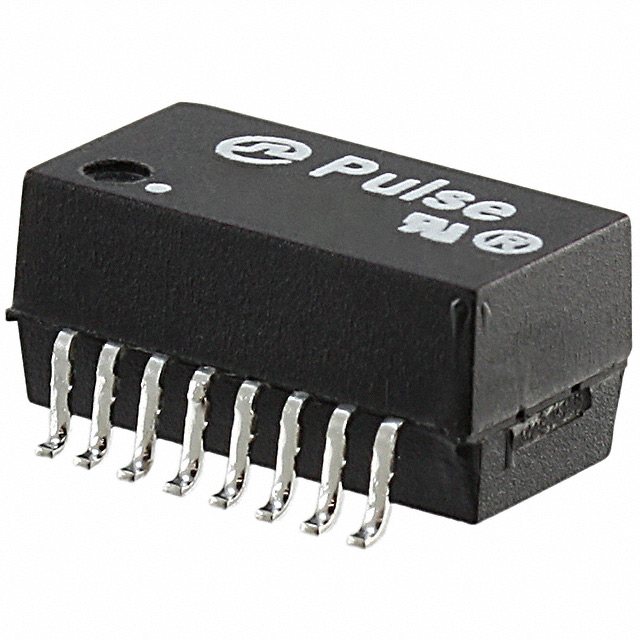

Image is for your reference only,please check specifications for details
- T1144NL - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC14287796
-
Category:Transformer
-
Datasheet:Datasheet 3D Model
-
Description:Telecom Transformer 1:1/1:2.4 1500Vrms 0.85Ω/0.85Ω Prim. DCR Surface Mount
-
Stock Locations:
-
Availability:657 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.11
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- T1144NL is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. T1144NL is described as TRANSFORMER TELECOM DUAL T1/E2. Perfect Parts is a supplier of Transformers and other Miscellaneous.
T1144NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Number of Channels | 2 Channel |
| Inductance | 1 mH |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Minimum CMRR Range | 50dB @1MHz |
| Resistance (DC Max) | 850 mΩ |
| Show | |
| Size-Length | 12.83 mm |
| Size-Width | 9.53 mm |
| Size-Height | 6.22 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
