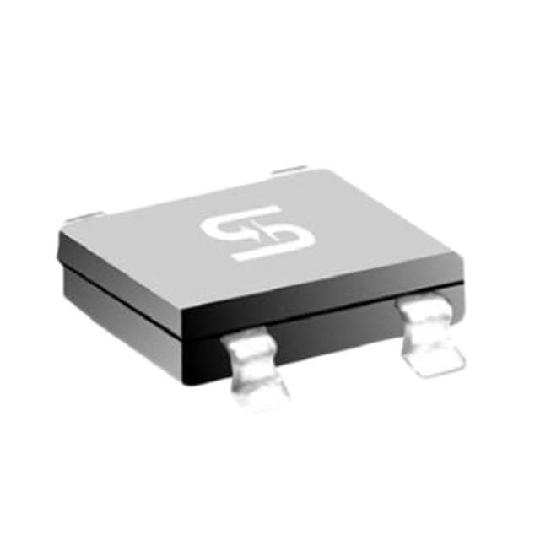

Image is for your reference only,please check specifications for details

DBLS101G - Taiwan Semiconductor
Manufacturer:
Taiwan Semiconductor
ManyChip's Part#:
MC118794037
Category:
Bridge Rectifier
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
TAIWAN SEMICONDUCTOR DBLS101G Bridge Rectifier Diode, Single, 50V, 1A, SOIC, 1.1V, 4Pins
Stock Locations:
Availability:
1,356 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DBLS101G is a 4-pin single-phase Bridge Rectifier Diode features a reliable construction utilizing moulded plastic technique. It has pure tin plated terminal, lead free, leads solderable per MIL-STD-202, Method 208. It has high surge current capability and ideal for printed circuit board.
Glass passivated junction
High temperature soldering guaranteed
Ideal for printed circuit board
High surge current capability
35V Maximum RMS voltage
-55 to 150°C Operating temperature range

Show

DBLS101G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOIC
Number of Positions	4 Position
Forward Current	1 A
Maximum Forward Voltage (Max)	1.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	8.51 mm
Size-Width	6.5 mm
Size-Height	2.6 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
