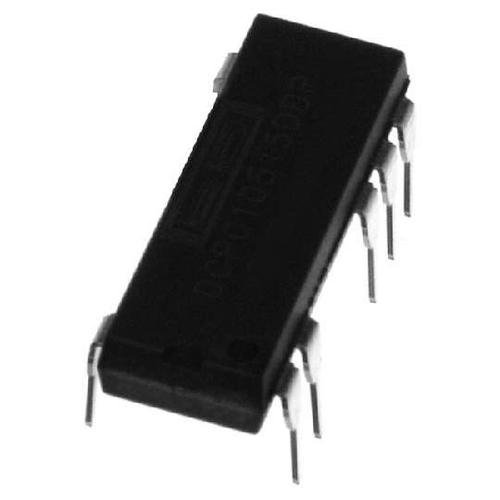

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DCP020505P is a family of 2W isolated unregulated DC/DC Converter Module. Requiring a minimum of external components and including on-chip device protection, the DCP02 series of device provides extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the DCP02 series of device suitable for a wide range of applications and is an easy-to-use solution in applications requiring signal path isolation.
Device-to-device synchronization
EN55022 Class B EMC performance
1kV Operational isolation
This product has operational isolation and is intended for signal isolation only. It should not be used as a part of a safety isolation circuit requiring reinforced isolation.

Show

DCP020505P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	800 kHz
Power Rating	2 W
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	400 mA
Number of Positions	14 Position
Quiescent Current	18.0 mA
Number of Regulated Outputs	1 Output
Output Power	2 W
Isolation Voltage	1 kV
Switching Frequency	800 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Output Current (Max)	400 mA
Input Power (Max)	2 W
Input Power (Max)	90 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 5.5V
	Show
Size-Length	18.7 mm
Size-Width	6.10 mm
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
