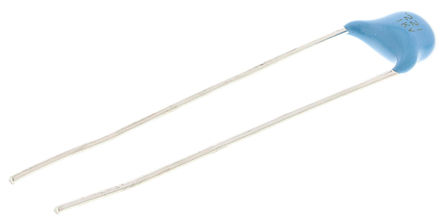

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DEB series from Murata are radial Class 2 high voltage ceramic capacitors. These capacitors are available in small size and high capacitance values ranging from 100pF to 10000pF. Capacitors available in 5mm, 7.5mm and 10mm lead space and ideally used in decoupling circuits.
- Rated DC voltage of 500V to 6.3KV
- Operating temperature range from -25°C to +85°C, +20 to +85°C and +85 to +125°C
- ±0.25pF, ±0.5pF%, ±5%, ±10% and -20% to +80%tolerance
- Compliant to UL94V-0 standard
- Coated with flame retardant epoxy resin
- Available in selective Temperature coefficient ranges
DEBB33A221KC1B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Radial, Disc |
| Pin Pitch | 5 mm |
| Voltage Rating (DC) | 1.00 kV |
| Operating Voltage | 1 kV |
| Insulation Resistance | 10.0 GΩ |
| Capacitance | 220 pF |
| Capacitance Tolerance | ±10 % |
| Dielectric Characteristic | B |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 1 kV |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 4.5 mm |
| Size-Height | 4 mm |
| Size-Diameter | 4.50 mm |
| Lead Length | 25.0 mm |
| Size-Thickness | 4.0 mm |
| Material | B |
| Dielectric Material | Ceramic |
| Operating Temperature | -25℃ ~ 85℃ |
| Temperature Coefficient | ±10 % |
| Product Lifecycle Status | Obsolete |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
