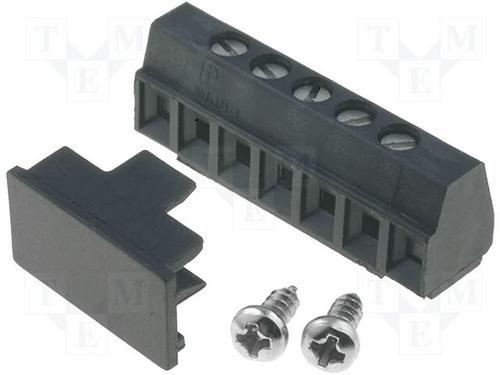

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 5 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Surface Mount
1727269 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Contacts | 5 Contact |
| Wire Gauge | 16AWG ~ 30AWG |
| Current Rating | 8 A |
| Number of Rows | 1 Row |
| Orientation | Right Angle |
| Number of Circuits | 5 Circuit |
| Current Rating (Max) | 8 A |
| Voltage Rating (Max) | 160 V |
| Voltage Rating | 250 V |
| Operating Voltage (Max) | 160 V |
| Show | |
| Size-Length | 7.3 mm |
| Size-Height | 9.2 mm |
| Housing Color | Black |
| Color | Black |
| Contact Material | Copper Alloy |
| Material | Polyamide (PA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
