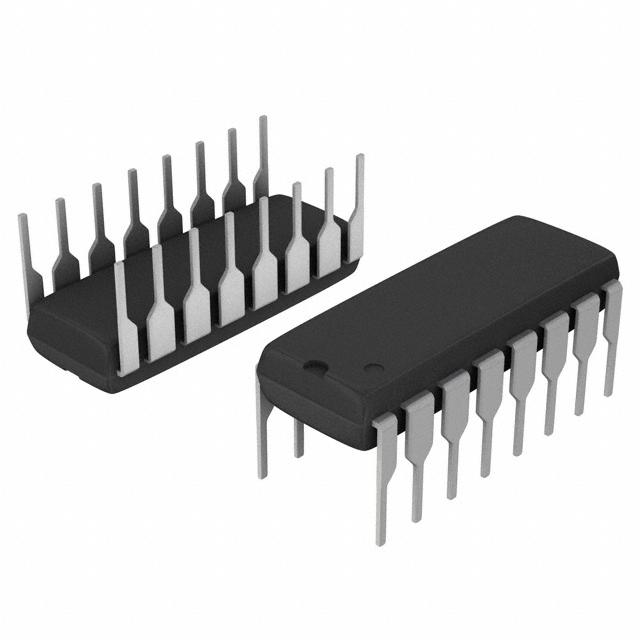

DG408DJZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC15249729
Category:
Multiplexer IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
8Channel, SGL ENDED MULTIPLEXER, PDIP16, ROHS COMPLIANT, PLASTIC, MS-001BB, DIP-16
Stock Locations:
Availability:
594 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.41

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DG408DJZ is a single 8-channel, monolithic CMOS Analog Multiplexers are drop-in replacements for the popular DG508A and DG509A series devices. They each include an array of eight analog switches, a TTL/CMOS compatible digital decode circuit for channel selection, a voltage reference for logic thresholds and an ENABLE input for device selection when several multiplexers are present. The device feature lower signal ON resistance (<250ns). Charge injection has been reduced, simplifying sample and hold applications. An epitaxial layer prevents the latch-up associated with older CMOS technologies. The analog switches are bilateral, equally matched for AC or bidirectional signals. The ON resistance variation with analog signals is quite low over a ±5V analog input range.
<11mW Low power consumption (PD)
<250ns Fast switching action
<150ns tON/OFF(EN)
Low charge injection
Single or split supply operation

Show

DG408DJZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Number of Outputs	1 Output
Contacts Type	DPST-NC
Supply Current	200 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	19.68 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
