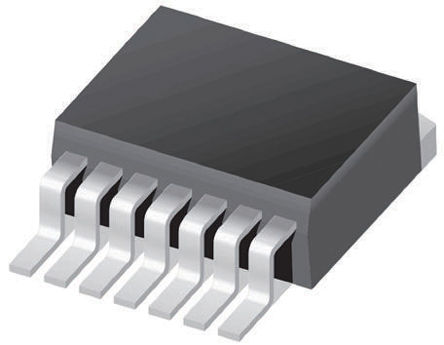

DRV101FKTWT - TI
Manufacturer:
TI
ManyChip's Part#:
MC10479269
Category:
FET Driver
Package:
TO-263-7
Datasheet:
Datasheet 3D Model
Description:
Peripheral Driver, PWM Solenoid, Valve, 1 Output, 9V to 60V supply, 800mV/2.3A out, TO-263-7
Stock Locations:
Availability:
303 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 31.77

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV101FKTWT is a low-side Power Switch employing a pulse-width modulated (PWM) output. Its rugged design is optimized for driving electromechanical devices such as valves, solenoids, relays, actuators and positioners. The solenoid/valve driver is also ideal for driving thermal devices such as heaters and lamps. PWM operation conserves power and reduces heat rise, resulting in higher reliability. In addition, adjustable PWM allows fine control of the power delivered to the load. Time from DC output to PWM output is externally adjustable. It can be set to provide a strong initial closure, automatically switching to a soft hold mode for power savings. Duty cycle can be controlled by a resistor, analogue voltage or digital-to-analogue converter for versatility. A flag output indicates thermal shutdown and over/under current limit. A wide supply range allows use with a variety of actuators.
Internal 24kHz oscillator
Digital control input
Adjustable delay and duty cycle
Over/undercurrent indicator
Fully protected - Thermal shutdown with indicator and internal current limit
Green product and no Sb/Br

Show

DRV101FKTWT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TO-263-7
Supply Voltage (DC)	9.00V (min)
Number of Outputs	1 Output
Output Voltage	800 mV
Output Current	2.3 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	0.8 Ω
Output Current (Max)	1.9 A
Fall Time (Max)	2.5 ns
Fall Time (Max)	2.5 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	9V ~ 60V
Supply Voltage (Max)	60 V
Supply Voltage (Min)	9 V
	Show
Size-Length	10.1 mm
Size-Width	8.89 mm
Size-Height	4.44 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
