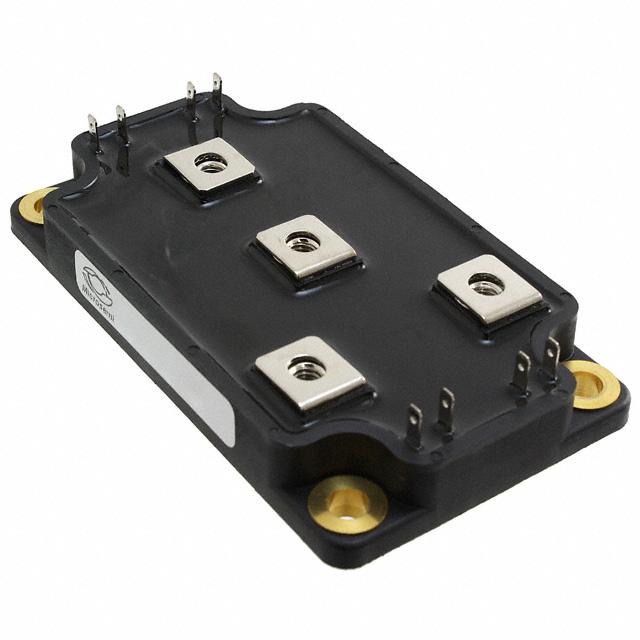

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

APTGF180H60G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	12 Pin
Case/Package	SP-6
Power Dissipation	833000 mW
Breakdown Voltage (Collector to Emitter)	600 V
Input Capacitance (Cies)	8.6nF @25V
Input Power (Max)	833 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	833000 mW
	Show
Product Lifecycle Status	Obsolete
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
