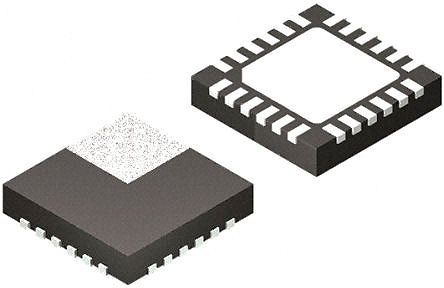

Image is for your reference only,please check specifications for details

DRV8834RGET - TI
Manufacturer:
TI
ManyChip's Part#:
MC5175644
Category:
Motor Driver
Package:
VQFN-24
Datasheet:
Datasheet 3D Model
Description:
2.2A Low Voltage Stepper w/ 32-step Indexer or Dual Brushed DC Motor Driver (Indexer or PH/EN Ctrl) 24-VQFN -40℃ to 85℃
Stock Locations:
Availability:
134 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8834RGET is a Low Voltage Stepper with 32-step indexer or dual brushed DC motor driver (indexer or PH/EN ctrl). It is designed for toys, printers, cameras and other mechatronic applications. The device has two H-bridge drivers and is intended to drive a bipolar stepper motor or two DC motors. The output driver block of each H-bridge consists of N-channel power MOSFETs configured as an H-bridge to drive the motor windings. Each H-bridge includes circuitry to regulate or limit the winding current. With proper PCB design, each H-bridge of the DRV8834 can driving up to 1.5A RMS (or DC) continuously, at 25°C with a VM supply of 5V. The device can support peak currents of up to 2.2A per bridge. Current capability is reduced slightly at lower VM voltages. Internal shutdown functions with a fault output pin are provided for overcurrent protection, short-circuit protection, under-voltage lockout and over-temperature. A low-power sleep mode is also provided.
Built-in indexer logic with simple step/direction control and up to 1/32-step microstepping
Phase/enable control, with the ability to drive external references for >1/32-step microstepping
Dynamic tBLANK and mixed decay modes for smooth microstepping
PWM winding current regulation and limiting
305mR HS + LS (at VM=5V, 25°C) Low RDS(ON)
Green product and no Sb/Br

Show

DRV8834RGET Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	VQFN-24
Supply Voltage (DC)	2.50V (min)
Number of Outputs	1 Output
Output Current	1.5 A
Number of Positions	24 Position
Drain to Source Resistance (on) (Rds)	305 mΩ
Switching Frequency	42.5 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5V ~ 10.8V
Supply Voltage (Max)	11 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	4.15 mm
Size-Width	4.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
