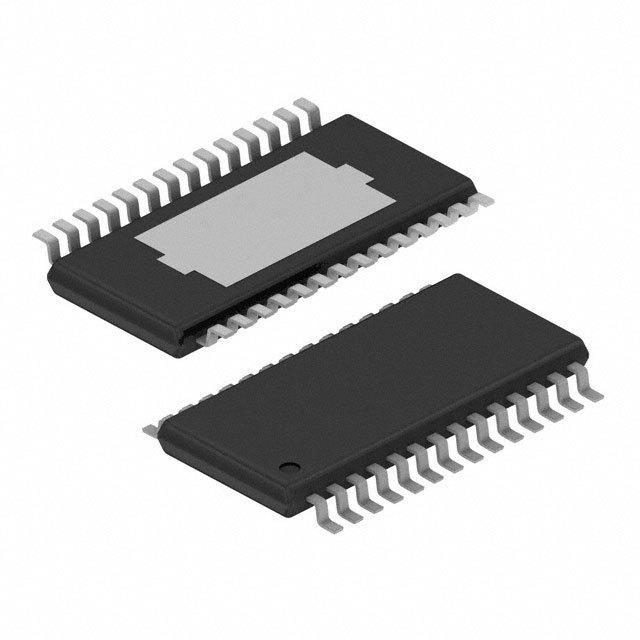

DRV8844PWPR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3487958
Category:
Motor Driver
Package:
HTSSOP-28
Datasheet:
Datasheet 3D Model
Description:
5A Brushed DC motor or Quad 1.75A Solenoid/Relay Driver with +/-30V split supply support (PWM Ctrl) 28-HTSSOP -40℃ to 85℃
Stock Locations:
Availability:
10,670 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.06

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8844PWPR is a four individually controllable 1/2-H-Bridge Driver with ±30V split supply support (PWM control). It can be used to drive two DC motors, one stepper motor, four solenoids or other loads. The output driver channel for each channel consists of N-channel power MOSFETs configured in a 1/2-H-bridge configuration. It can supply up to 2.5A peak or 1.75A RMS output current per channel (with proper PCB heat sinking at 24V and 25°C) per H-bridge. Separate inputs to independently control each 1/2-H-bridge are provided. To allow operation with split supplies, the logic inputs and nFAULT output are referenced to a separate floating ground pin. Internal shutdown functions are provided for overcurrent protection, short-circuit protection, under-voltage lockout and over-temperature.
Full individual half bridge control
Low MOSFET on-resistance
Floating input buffers allow dual (bipolar) supplies (up to ±30V)
Built-In 3.3V/10mA LDO regulator
Industry standard IN/IN digital control interface
Outputs can be connected in parallel
Green product and no Sb/Br

Show

DRV8844PWPR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Supply Voltage (DC)	8.00V (min)
Number of Outputs	4 Output
Output Current	1.75 A
Number of Positions	28 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 60V
Supply Voltage (Max)	60 V
Supply Voltage (Min)	8 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
