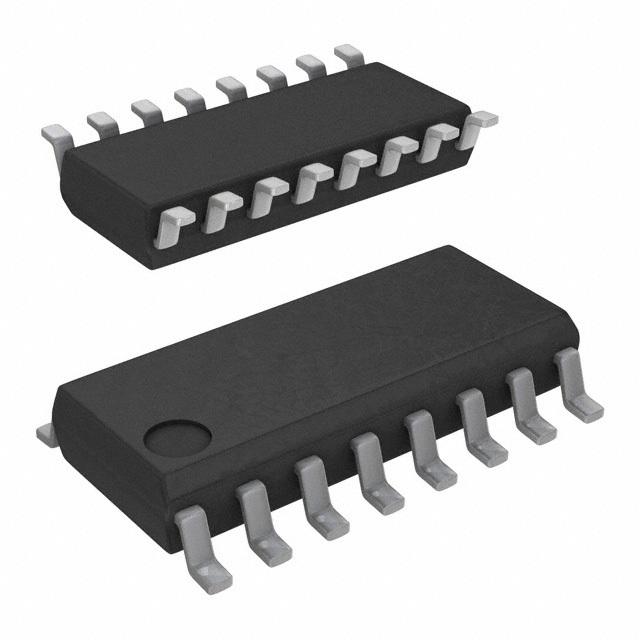

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DS2003CM is a Bipolar Transistor Array comprises seven high voltage, high current NPN Darlington transistor pairs. All units feature a common emitter and open collector outputs. To maximize their effectiveness, these units contain suppression diodes for inductive loads and appropriate emitter base resistors for leakage. The device has a series base resistor to each Darlington pair, thus allowing operation directly with TTL or CMOS operating at supply voltages of 5V. The device offers solutions to a great many interface needs, including solenoids, relays, lamps, small motors and LEDs. Applications requiring sink currents beyond the capability of a single output may be accommodated by paralleling the outputs.
High output voltage
High output current
TTL, PMOS, CMOS Compatible
Suppression diodes for inductive loads
Extended temperature range

Show

DS2003CM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.00V (max)
Number of Outputs	7 Output
Output Voltage	50 V
Output Current	500 mA
Number of Channels	7 Channel
Number of Positions	16 Position
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	55 V
Drivers Per Package	7
Continuous Collector Current	0.5A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
