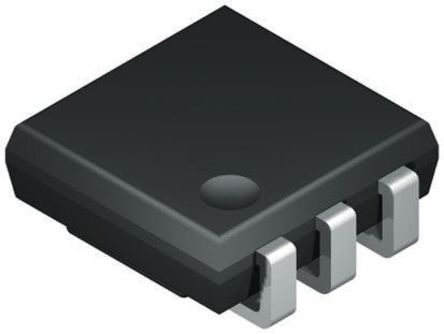

DS2401P+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC3742327
Category:
Active Chip
Package:
TSOC-6
Datasheet:
Datasheet 3D Model
Description:
Memory Circuit, 64X1, PDSO6, 3.70 X 4MM, 1.5MM HEIGHT, LEAD FREE, TSOC-6
Stock Locations:
Availability:
9,690 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.62

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DS2401P+ is a silicon serial number IC in 6 pin TSOC package. This enhanced silicon serial number is a low cost electronic registration number that provides an absolutely unique identity which can be determined with a minimal electronic interface (typically a single port pin of a microcontroller). The DS2401 consists of factory lasered, 64bit ROM that includes unique 48bit serial number, 8bit CRC and 8bit family code (01h). Data is transferred serially via 1-Wire protocol that requires only single data lead and ground return. Power for reading and writing the device is derived from data line itself with no need for an external power source. The DS2401 is an upgrade to DS2400. It is fully reverse compatible with DS2400 but provides additional multi drop capability that enables many devices to reside on a single data line.
Guaranteed unique 64bit ROM ID chip for absolute traceability
1-wire interface lowers cost and interface complexity
Multiple DS2401 devices can reside on a common 1-wire net
Built-in multidrop controller ensures compatibility with other 1-wire net products
Reduces control, address, data and power to a single pin and communicates at up to 16.3Kbps
Presence pulse acknowledges when reader first applies voltage
Wide voltage and temperature operating ranges enables robust system performance
Extended supply voltage range from 2.8V to 6.0V
Zero standby power required
Operating temperature range from -40°C to 85°C

Show

DS2401P+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOC-6
Supply Voltage (DC)	5.00 V
Number of Positions	6 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.8.6 VDC
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2.8 V
	Show
Size-Length	4 mm
Size-Width	3.89 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
