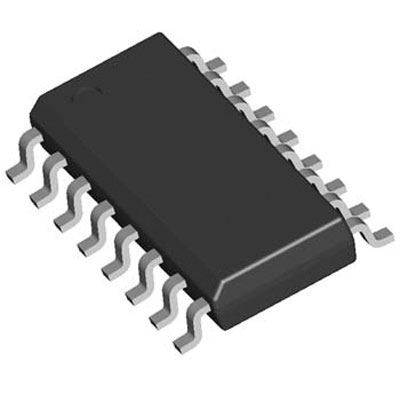

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The DS90C032B is a quad CMOS differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The device supports data rates in excess of 155.5 Mbps (77.7 MHz) and uses Low Voltage Differential Signaling (LVDS) technology.
- FEATURES
- • >155.5 Mbps (77.7 MHz) Switching Rates
- • Accepts Small Swing (350 mV) Differential Signal Levels
- • High Impedance LVDS Inputs with Power Down
- • Ultra Low Power Dissipation
- • 600 ps Maximum Differential Skew (5V, 25°C)
- • 6.0 ns Maximum Propagation Delay
- • Industrial Operating Temperature Range
- • Available in Surface Mount Packaging (SOIC)
- • Pin Compatible with DS26C32A, MB570 (PECL) and 41LF (PECL)
- • Supports OPEN and Terminated Input Failsafe
- • Conforms to ANSI/TIA/EIA-644 LVDS Standard
DS90C032BTM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Number of Channels | 4 Channel |
| Power Dissipation | 1025 W |
| Power Consumption | 18.0 W |
| Input Current (Min) | 10 µA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1025 mW |
| Supply Voltage | 4.5V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Rail |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
